Weather Forecast

News Headlines Module

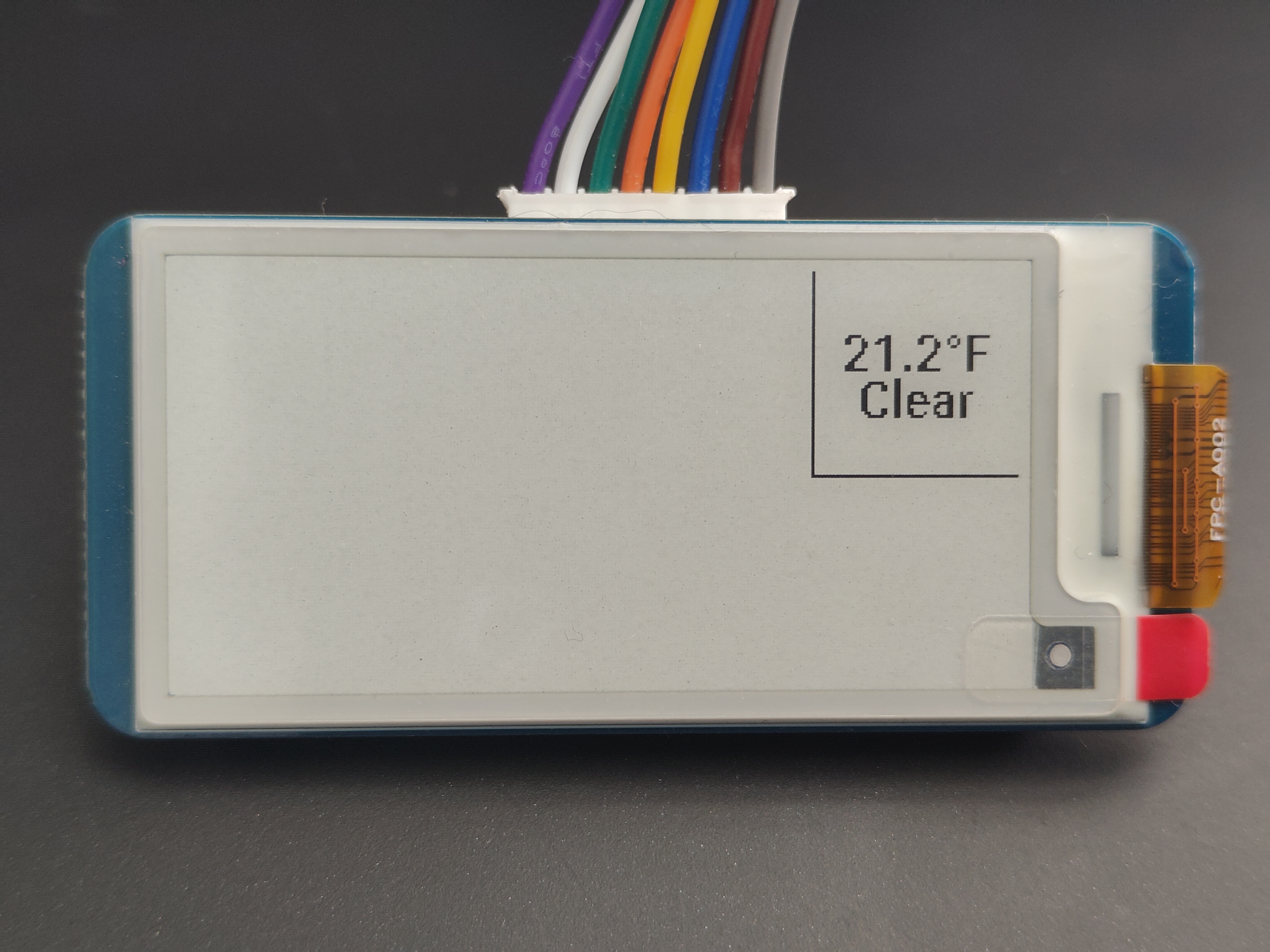

Weather Forecast module displaying the current temperature and weather condition.

Overview​

The Weather Forecast module provides real-time weather updates for a specified location using the
Open-Meteo Current Weather API. Note: Only US ZIP codes are supported. The module's display is a compact 1x1 square:

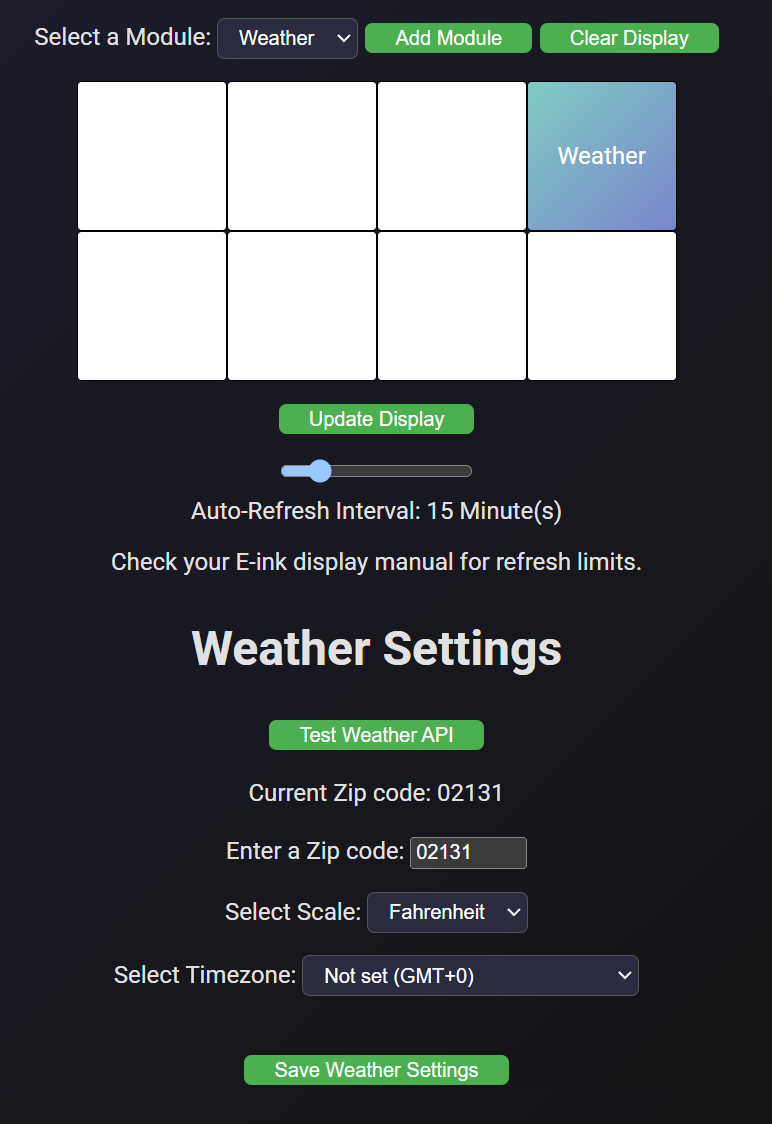

Web GUI View​

Weather Forecast Module

Information Displayed​

The module presents the following details:

  • Current Temperature: Displays the temperature with the selected unit (°F or °C).
  • Weather Description: Provides a human-readable condition, such as "Clear Sky" or "Overcast."

Usage​

  1. Click the "Select a Module:" dropdown at the top of the web GUI and select the "Weather" module.
  2. Click the green "Add Module" button to the right of the dropdown.
  3. Drag and drop the module to your desired position within the grid.
  4. Enter a valid US ZIP code in the "Enter a ZIP Code" field.
  5. Choose a temperature scale: °F, °C, or °K.
  6. Select a timezone. Leaving this as "Not Set" may prevent Open-Meteo's API from detecting the correct timezone.
  7. Click "Save Weather Settings":
    • A green confirmation message will appear if the settings are saved successfully.
    • A red error message will indicate a failure.
  8. Click "Update Display":
    • The screen will blink (indicating a cleaning sequence) and display the updated configuration.

Workflow​

The Weather Forecast module retrieves real-time weather data based on user settings stored in the database, including ZIP code and preferred temperature scale.

  1. Retrieve Settings:
    The module pulls the selected zipcode and preferred temperature scale settings from the database (WeatherSettings table).

  2. ZIP Code Conversion:
    The module converts the ZIP code to latitude and longitude using a local dataset (US.txt).

  3. API Request:
    It queries the Open-Meteo API with the derived coordinates and user preferences, such as temperature scale.

  4. Response Handling:
    The API's response is parsed to extract the temperature and weather conditions for display.

Open-Meteo API Parameters​

ParameterDescription
latitudeLatitude from ZIP-to-coordinate conversion.
longitudeLongitude from ZIP-to-coordinate conversion.
current_weatherRetrieves current weather data (always True).
temperature_unitUser-selected temperature scale (°F, °C, or °K).
timezoneAutomatically detected if not explicitly set.
