Stock Prices

News Headlines Module

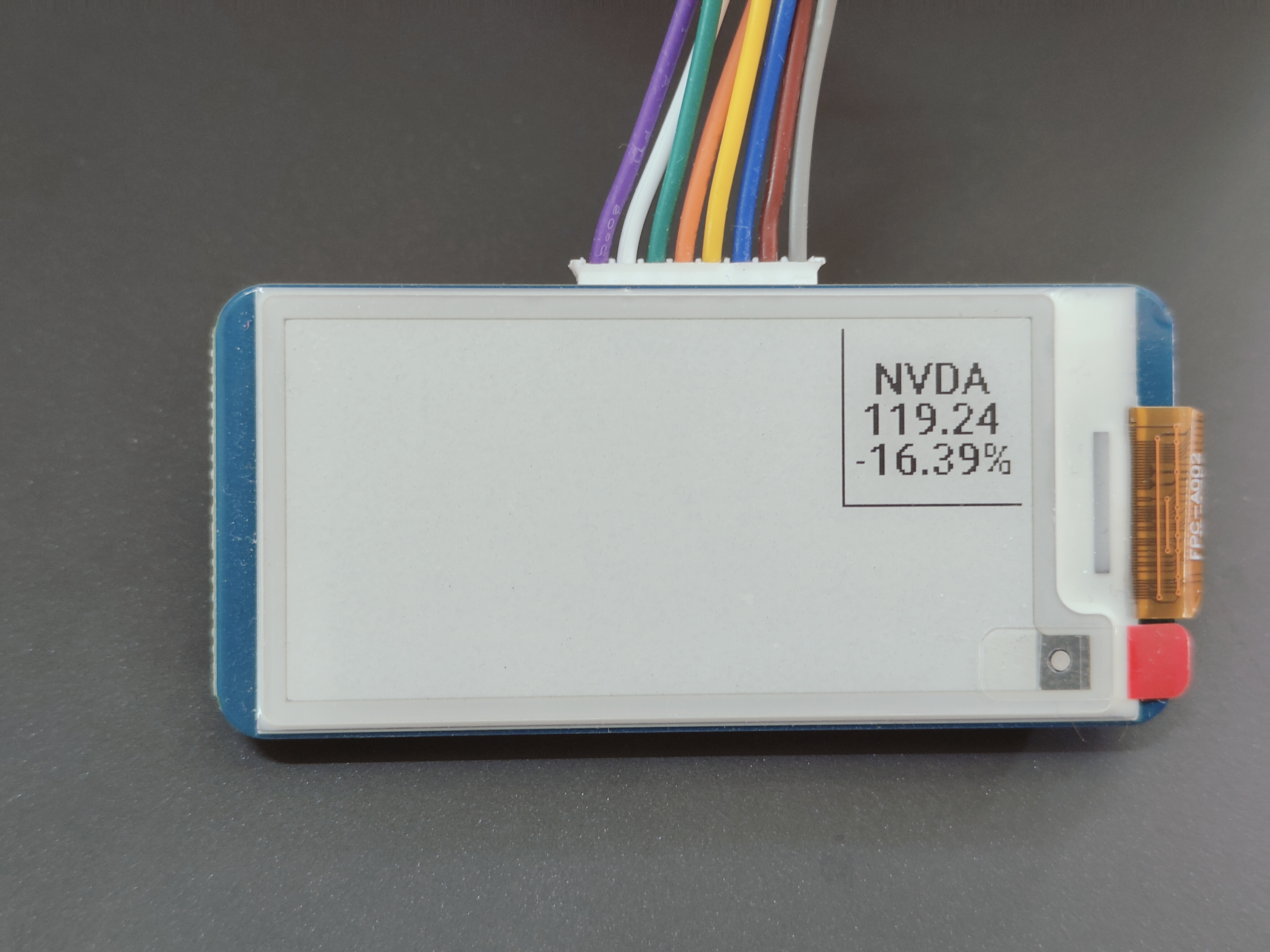

Stock Prices module displaying the current Nvidia (NVDA) stock price and the change (%) since previous close.

Overview​

The Stock Prices module displays information about the selected ticket (stock). The module's display is a compact 1x1 square:

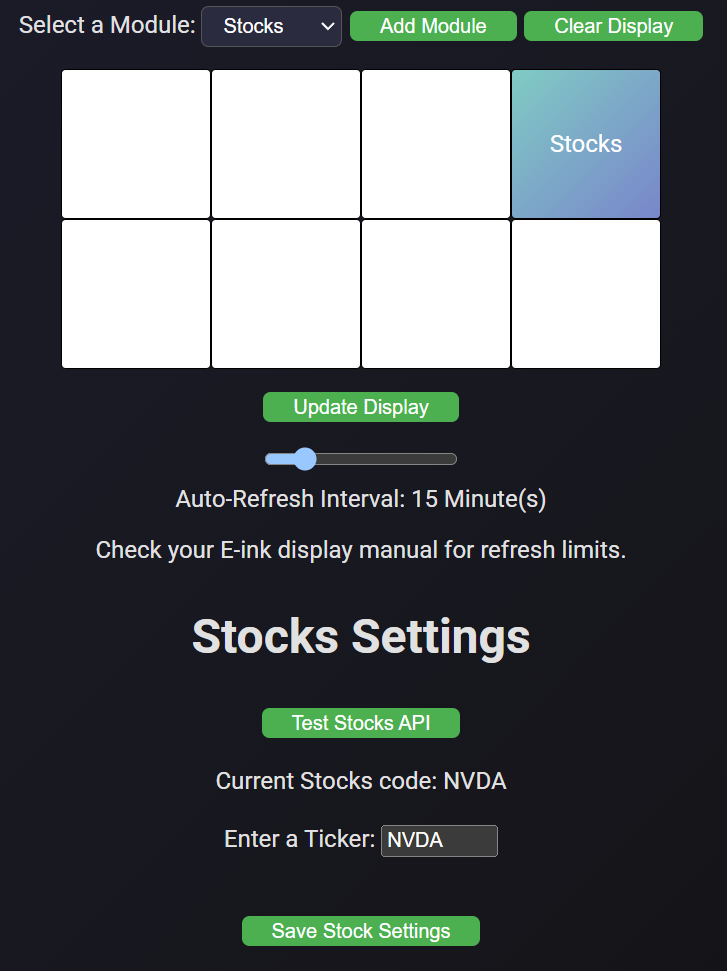

Web GUI View​

News Forecast Module

Information Displayed​

The module presents the following information:

  • Stock Current Price: The current stock price, as retrieved from yfinance.
  • Change (%) Since Previous Close: The percentage change in price since the previous day's closing price.
    • Formula: ((current_price - previous_close) / previous_close) * 100
    • Note: The percentage change may vary across financial platforms (e.g., Google and Yahoo often display different daily percentage changes). This module replicates Yahoo Finance's calculations.

Usage​

  1. Click the "Select a Module:" dropdown at the top of the web GUI and select the "Stocks" module.
  2. Click the green "Add Module" button to the right of the dropdown.
  3. Drag and drop the module to your desired position within the grid.
  4. Enter a valid ticker symbol in the "Enter a Ticker" field.
  5. Click "Save Stock Settings". If successful, a green message will confirm the settings were saved. If not, a red message will indicate the failure.
  6. Click "Update Display". The screen will blink (indicating a cleaning sequence) and display the updated module configuration.

Workflow​

The Stock Prices module retrieves real-time financial data based on user settings stored in the database, such as ticker of choice.

  1. Retrieve Settings:
    The module pulls the ticker of choice from the database (StockSettings table).

  2. API Request:
    Through yfinance a request is made to get information about the stock.

  3. Response Handling:
    The API's response is parsed to extract the current price and calculate the price difference from the current price and the previous close price for display.
